Molded case circuit plug-in breakers for loadcenter mounting with insta-wire in 2 types of tripping speed QT=10KA, QTH=22KA. Available in tandem and quad versions 1 pole 120vac, 2 poles common trip 240vac.

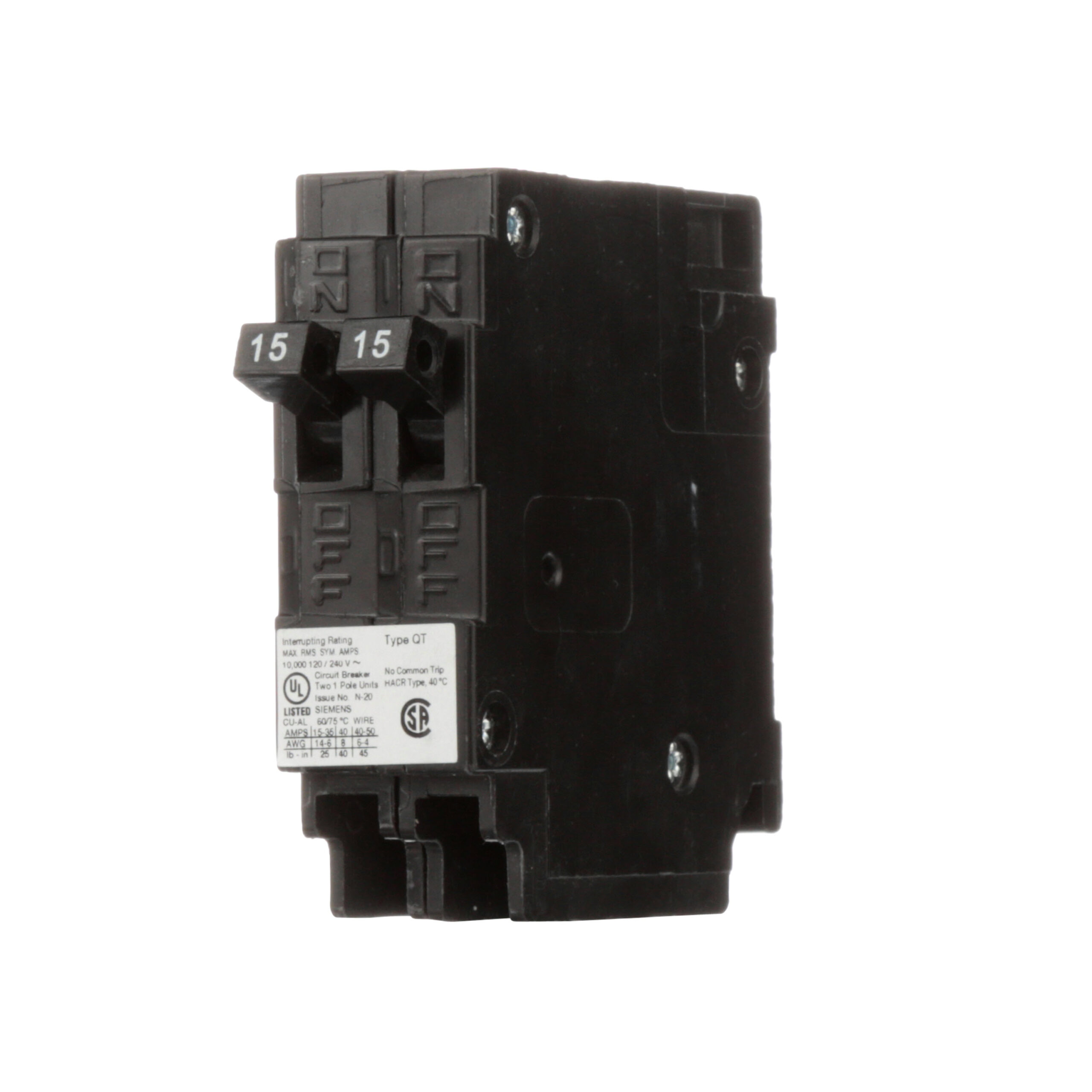

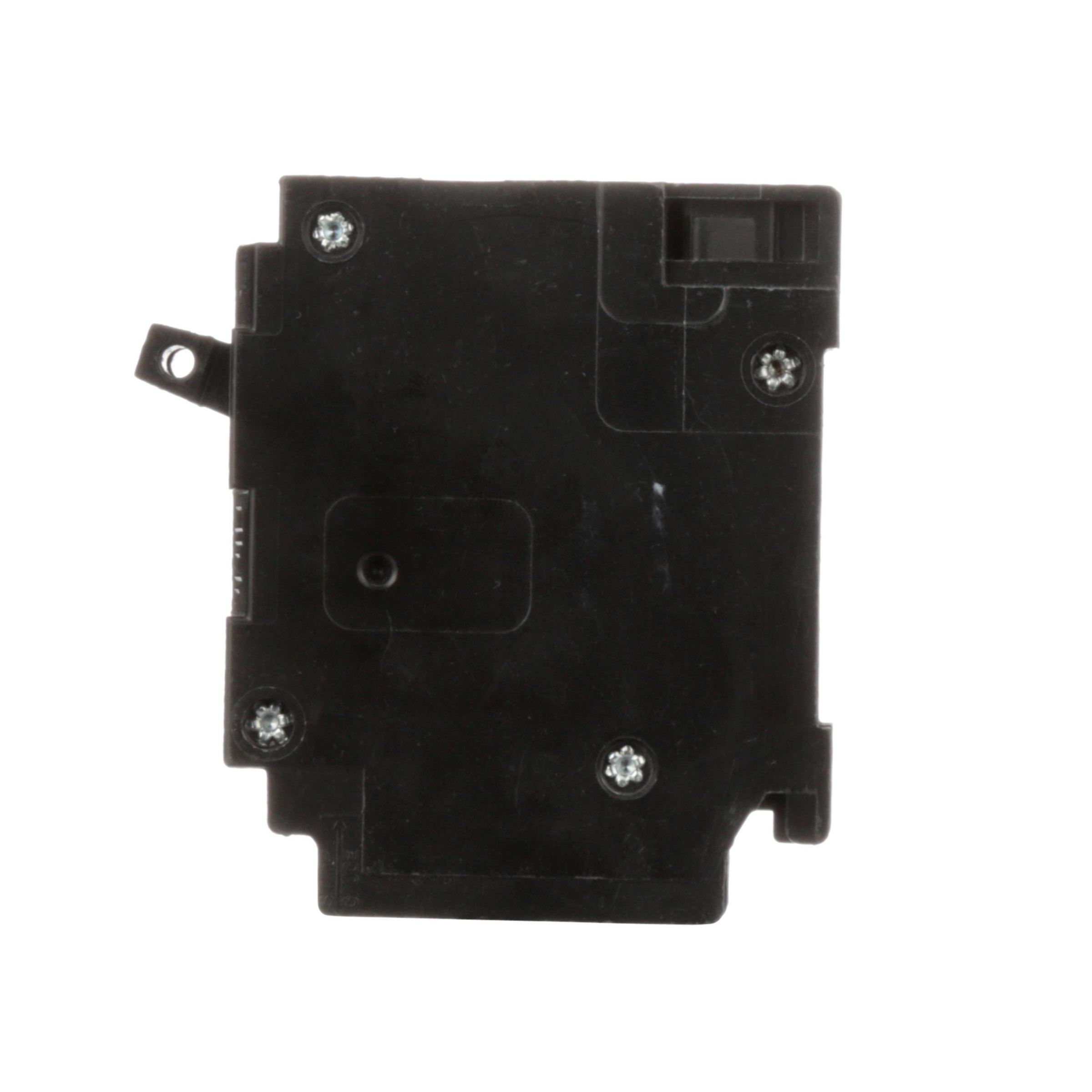

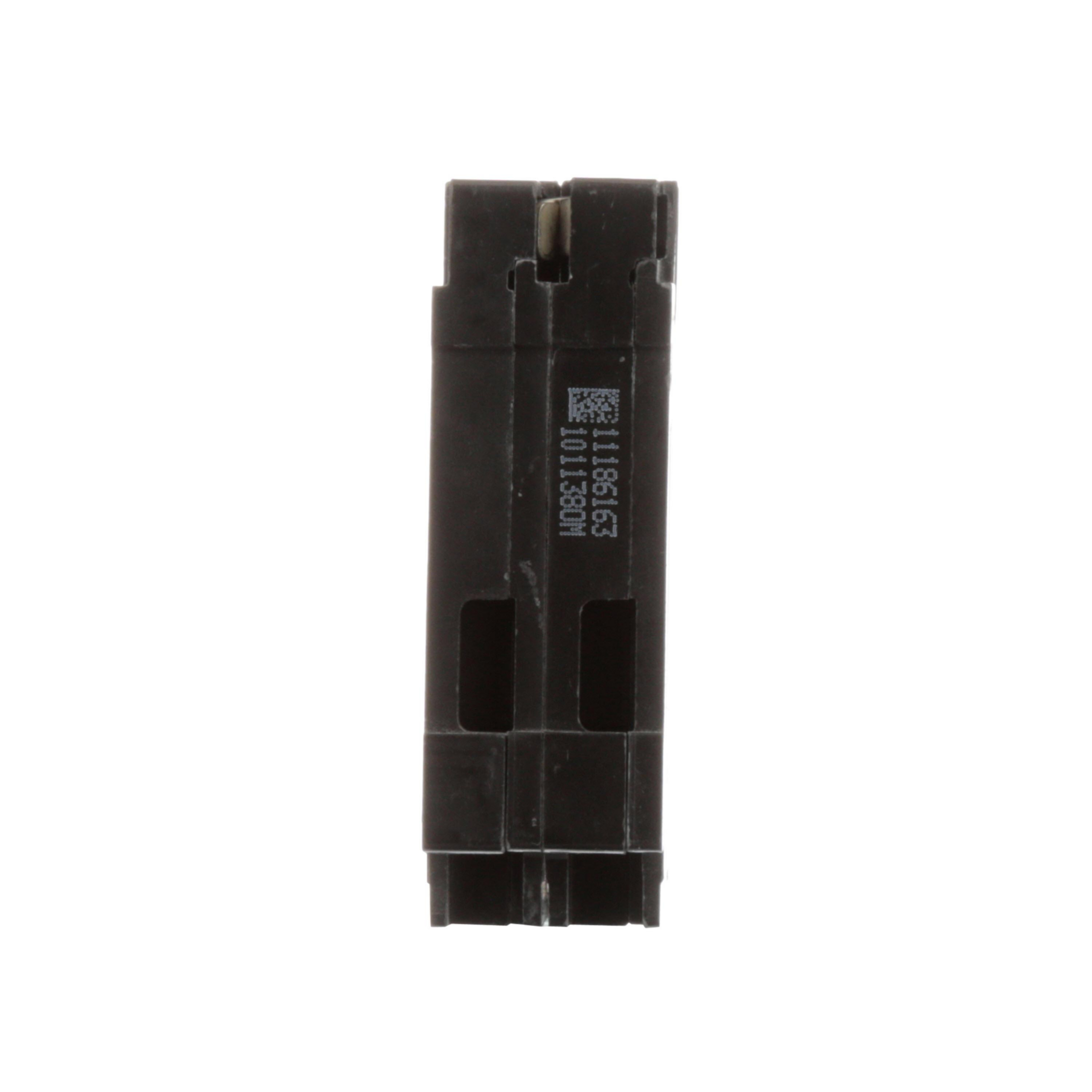

SIEMENS CANADA Q1515NC 15/15Amp 1-Pole 120V Type QT Push-On Tandem Breaker
$19.99
Specifications
| Brand Name | Siemens | Sub Brand | Circuit Breakers |
| Item Name | Circuit Breaker | Type | QT, Non-CTL |
| Number of Poles | 1 | Interrupt Rating | 10 kA |
| Amperage Rating | 15 A | Voltage Rating | 120 V |
| Terminal Connection | Plug-in | Trip Range | Thermal Magnetic |
| Frequency Rating | 60 Hz | Actuator | N/A |
| Auxiliary Contacts | N/A | Frame | N/A |
| Trip Type | Thermal Magnetic | Dimensions | 3 in L x 1 in W x 3 in H |
| Standards | UL 489 | Application | Electrical Distribution |
| UPC | 783643156609 |
| 1 – UNIT – 1 | 12 – UNIT – 12 |
| Spec Sheet |
|---|
Reviews
There are no reviews yet.
