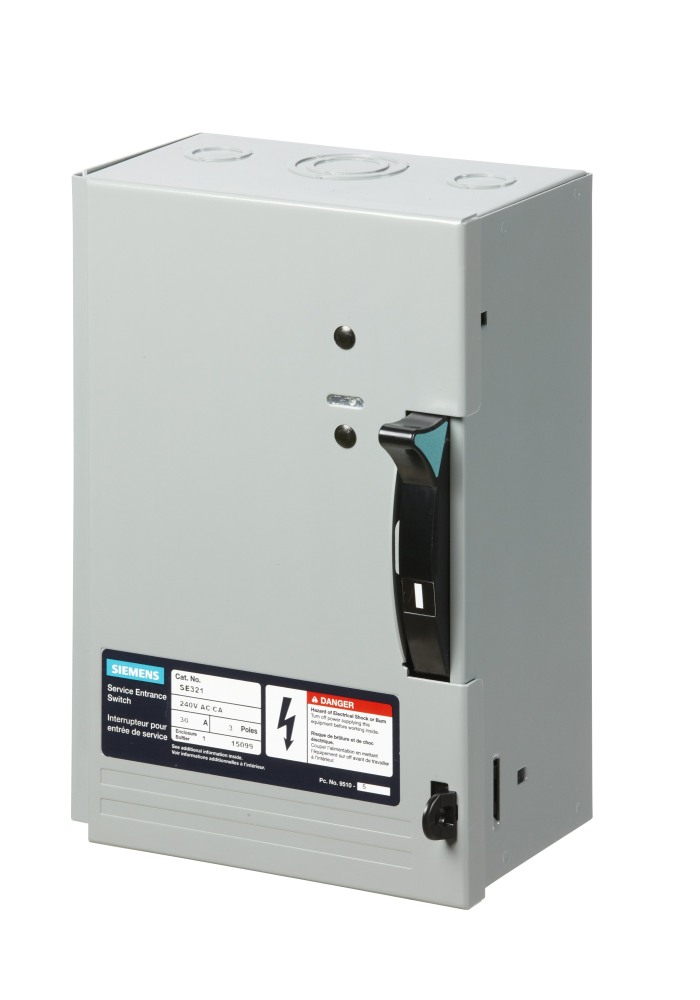

CSA Industrial Duty Safety Switch, Fusible, 3 Poles, 240V, 30A, Type 1, With Neutral – Service Entrance Rated
SIEMENS ID421 SWITCH ID 30A 3PH SNSERV ENTRANCE
$214.51
Specifications
| Brand Name | Siemens | Sub Brand | Disconnect Switches |
| Item Name | Disconnect Safety Switch | Type | Light Duty, Fusible, Single-Throw |
| Voltage Rating | 240 VAC | Amperage Rating | 30 A |
| Phase | 1 | Interrupt Rating | 10 kA |
| Number of Poles | 3 | Number of Wires | 4 |
| Contact Configuration | 3 NO, 3 NC Auxiliary | Wire Size | 14-2 AWG (Line and Load), 14-4 AWG (Neutral) |
| Housing Material | Steel | NEMA Rating | NEMA 1 |
| Dimensions | 8 in W x 5.03 in D x 15.37 in H | Includes | Fuse Puller |
| Standards | CSA Certified | Application | For Indoor use |
| UPC | 662862006899 |
| 1 – UNIT – 1 |
| Spec Sheet |
|---|
