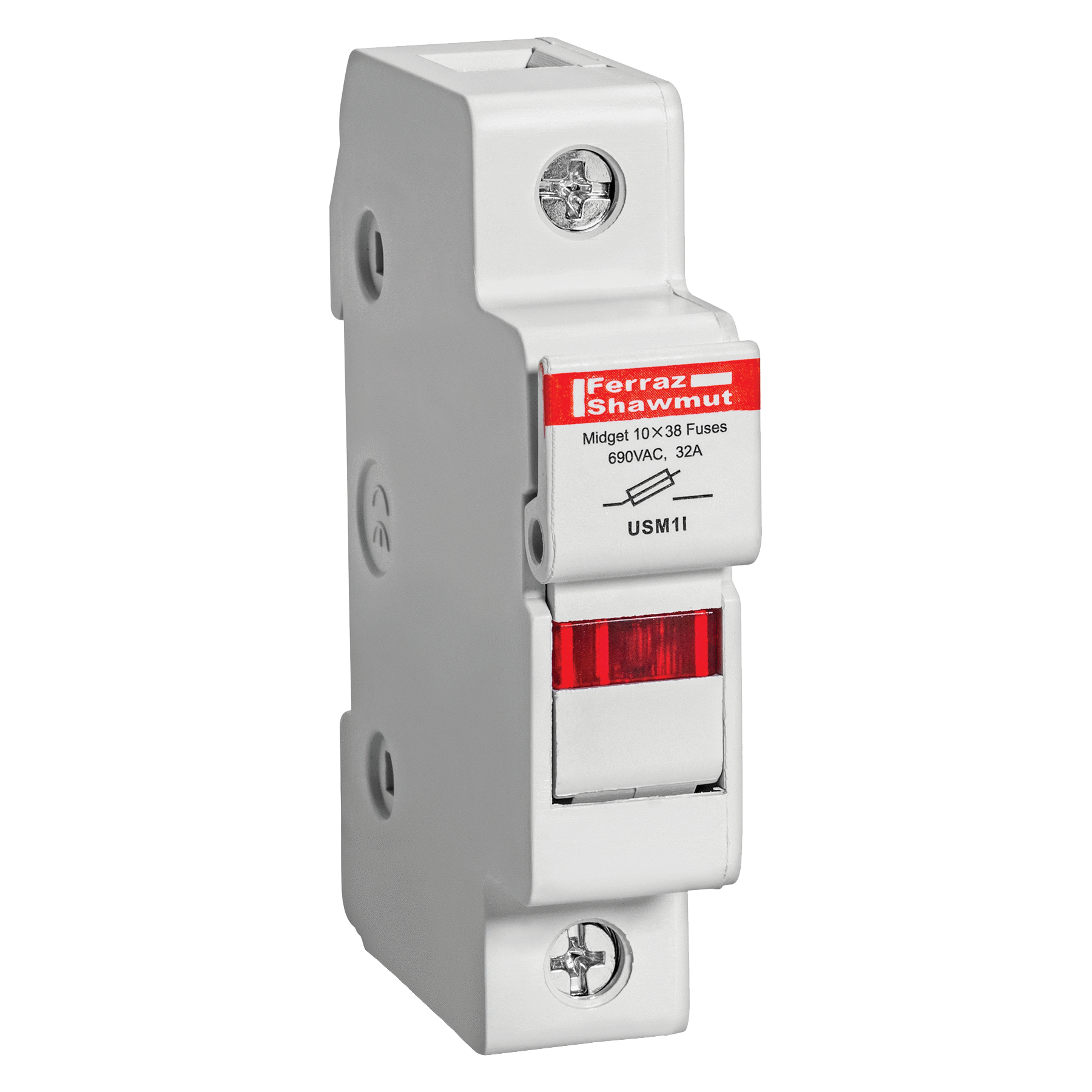

USM1IHEL
$9.79
Mersen USM Series UltraSafe Modular Fuse holders introduce a new level of safety for Midget 1-1/2″ x 13/32″ AC and DC-rated fuses up to 30 amperes. UltraSafe holders qualify as “Finger-safe” under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multipole units can also be field assembled by ordering pin-tie handles.
UltraSafe holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe body material is tough and durable polyamide, with exceptional insulating properties.
Specifications
| Item number | USM1IHEL |
| Description | Fuse Holder UltraSafe™ 600VAC 600VDC Midget 30A 1-Pole Helio LED Pressure Plate IP20 |
| EAN/UPC Code | 782001441067 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30 A |
| AC or DC | AC/DC |
| Fuse Class | Midget |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Fuse Type/Class | Midget |
| Design Details | Helio |
| Indication System | Yes |
| Indication System Type | LED |
| Number of Poles | 1-Pole |
| Wiring range | #6 to #14 Solid or Stranded |
| Fuse Installation Method | Clip-in |
| Torque Rating | 1.695 N m |
| Max Fuse Rating | 30 A |
| Housing Material | Polyamide |
| Installation Mounting | DIN Rail |
| Product Width | 17.5 mm |
| Product Length | 78 mm |
| Product Height | 58.9 mm |
| Sell Pack Quantity | 12 EA |
| Sell Pack Weight | 0.7983 kg |
| Sell Pack Width | 88.9 mm |
| Sell Pack Length | 215.9 mm |
| Sell Pack Height | 67.6 mm |
| Product group | Fuse Holders |
| Product Weight | 0.0635 kg |
