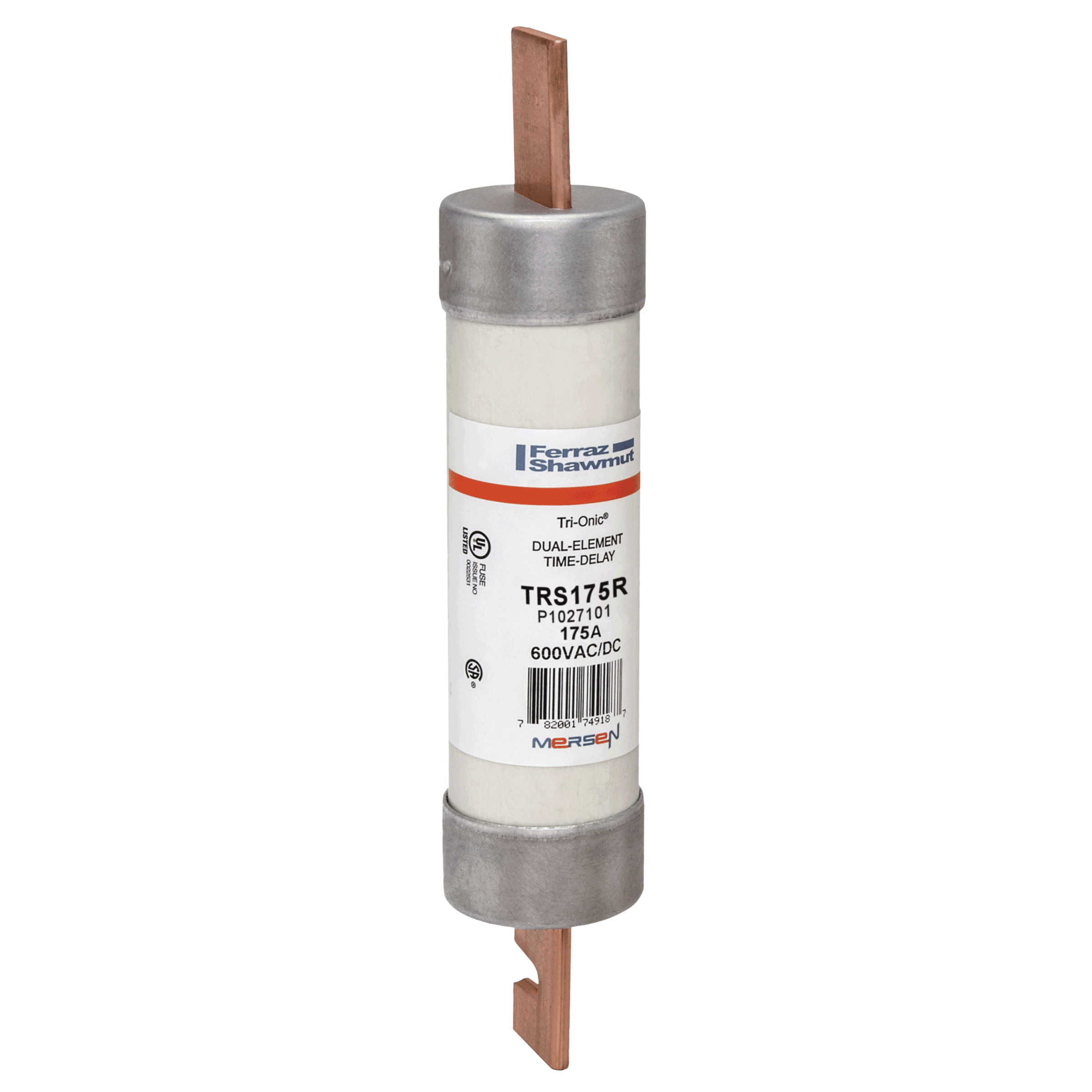

TRS175R
$37.71
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today’s motors and transformers.
Specifications
| Item number | TRS175R |
| Description | Fuse TRS-R – Class RK5 – Time-Delay 600VAC 600VDC 175A Blade Tri-Onic® |
| EAN/UPC Code | 782001749170 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 175 A |
| AC or DC | AC/DC |
| Fuse Class | Class RK5 |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 46.1 mm |
| Product Length | 244.6 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 0.6305 kg |
| Sell Pack Width | 49.3 mm |
| Sell Pack Length | 49.3 mm |
| Sell Pack Height | 254 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.5987 kg |
