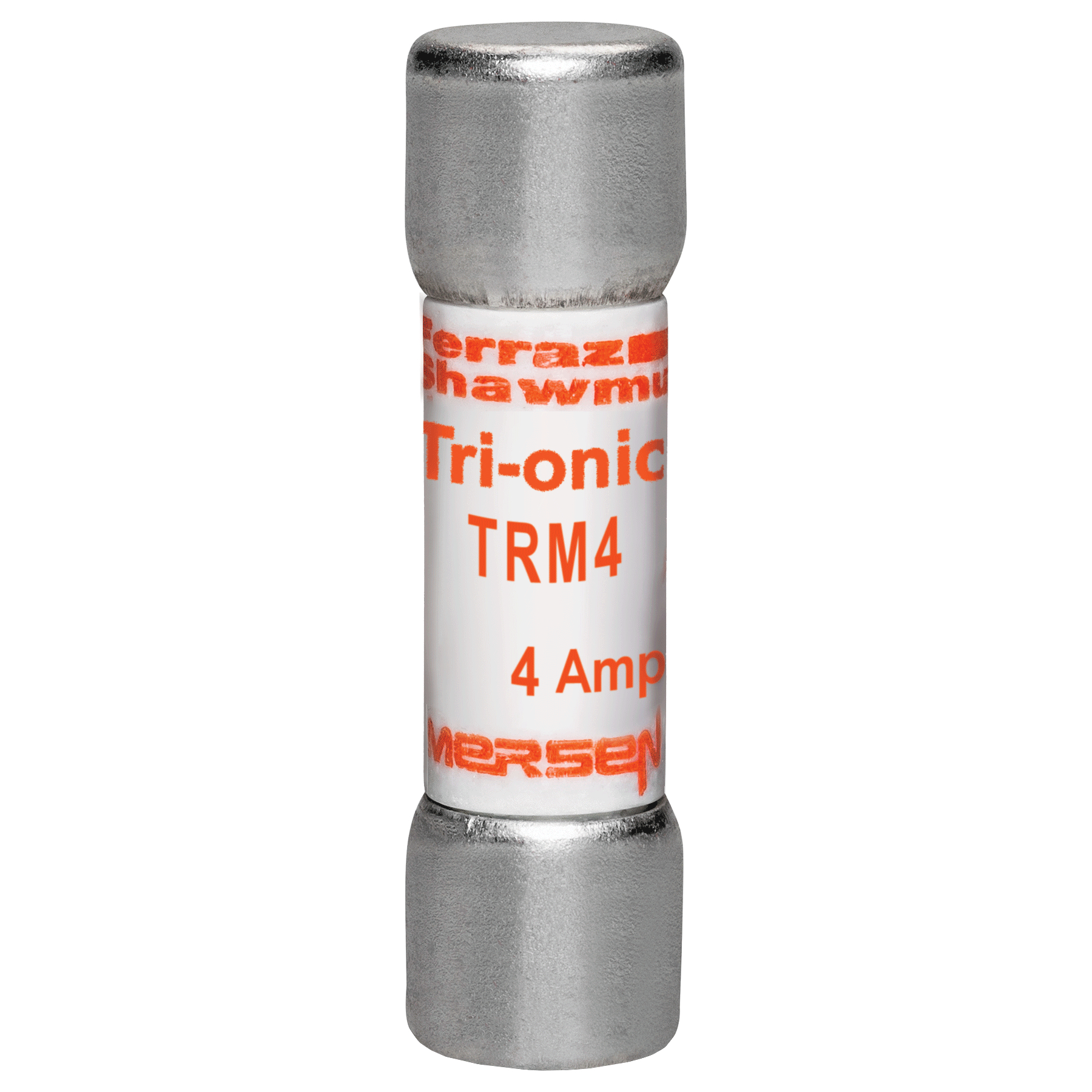

TRM4
$3.32
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
Specifications
| Item number | TRM4 |
| Description | Fuse TRM – Midget – Time-Delay 250VAC 4A Ferrule Tri-Onic® |
| EAN/UPC Code | 782001743413 |
| Rated voltage AC UL | 250 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 4 A |
| AC or DC | AC |
| Fuse Class | Midget |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.3 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.0635 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 41.4 mm |
| Sell Pack Height | 54.1 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0059 kg |
