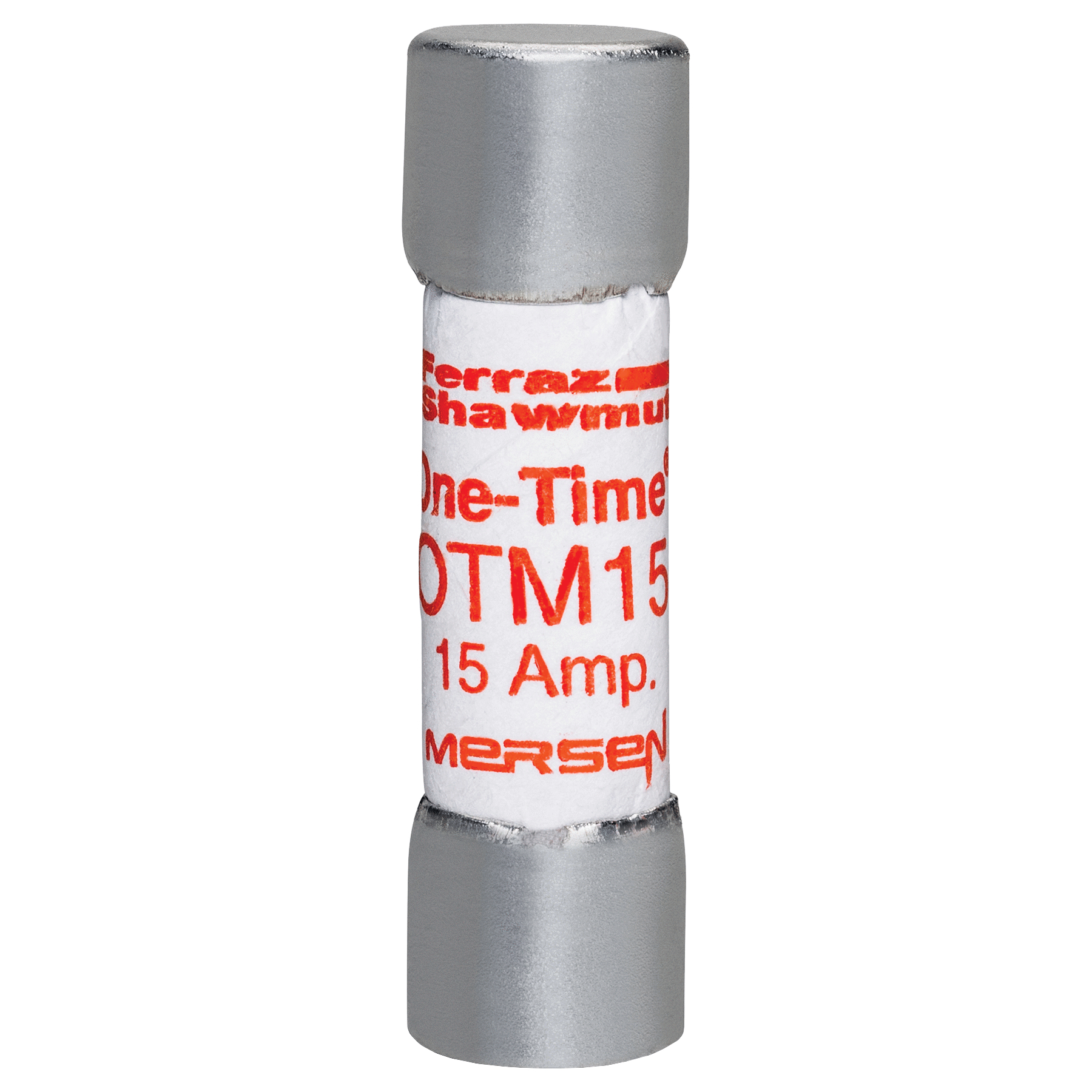

OTM15
$2.12
One-Time OTM midget fuses provide low-cost protection for 250VAC general purpose lighting, heating, control circuits, etc. where time-delay is not required. (Not for Branch Circuit Protection).
Specifications
| Item number | OTM15 |
| Description | Fuse OTM – Midget – Fast-Acting 250VAC 15A Ferrule Amp-Trap® |
| EAN/UPC Code | 782001705121 |
| Rated voltage AC UL | 250 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 15 A |
| AC or DC | AC |
| Fuse Class | Midget |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.3 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.059 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 41.4 mm |
| Sell Pack Height | 54.1 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | Paper |
| Product Weight | 0.0054 kg |
