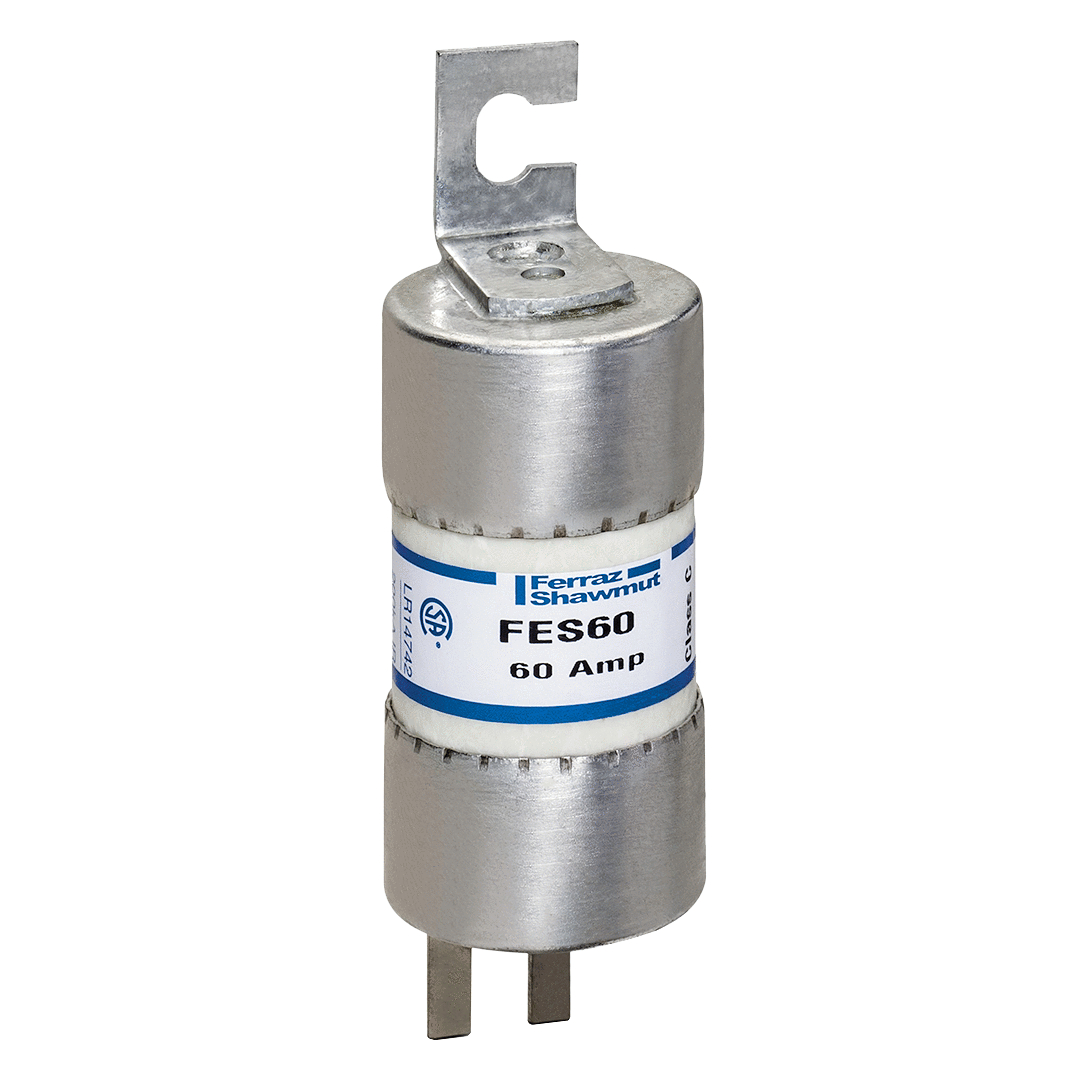

FES60
$12.49
Ferraz Shawmut Class C fuses have British standard (BS88) dimensions and are exact replacements for the British fuses and older HRCII-C fuses. Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay.
Specifications
| Item number | FES60 |
| Description | Fuse FES – HRC-II 600VAC 460VDC 60A Blade |
| EAN/UPC Code | 068938904067 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 460 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 60 A |
| ROHS Compliant | Yes |
| AC or DC | AC/DC |
| Fuse Class | Class C |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 26.9 mm |
| Product Length | 87.4 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.8165 kg |
| Sell Pack Width | 87.4 mm |
| Sell Pack Length | 58.7 mm |
| Sell Pack Height | 124 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.0776 kg |
