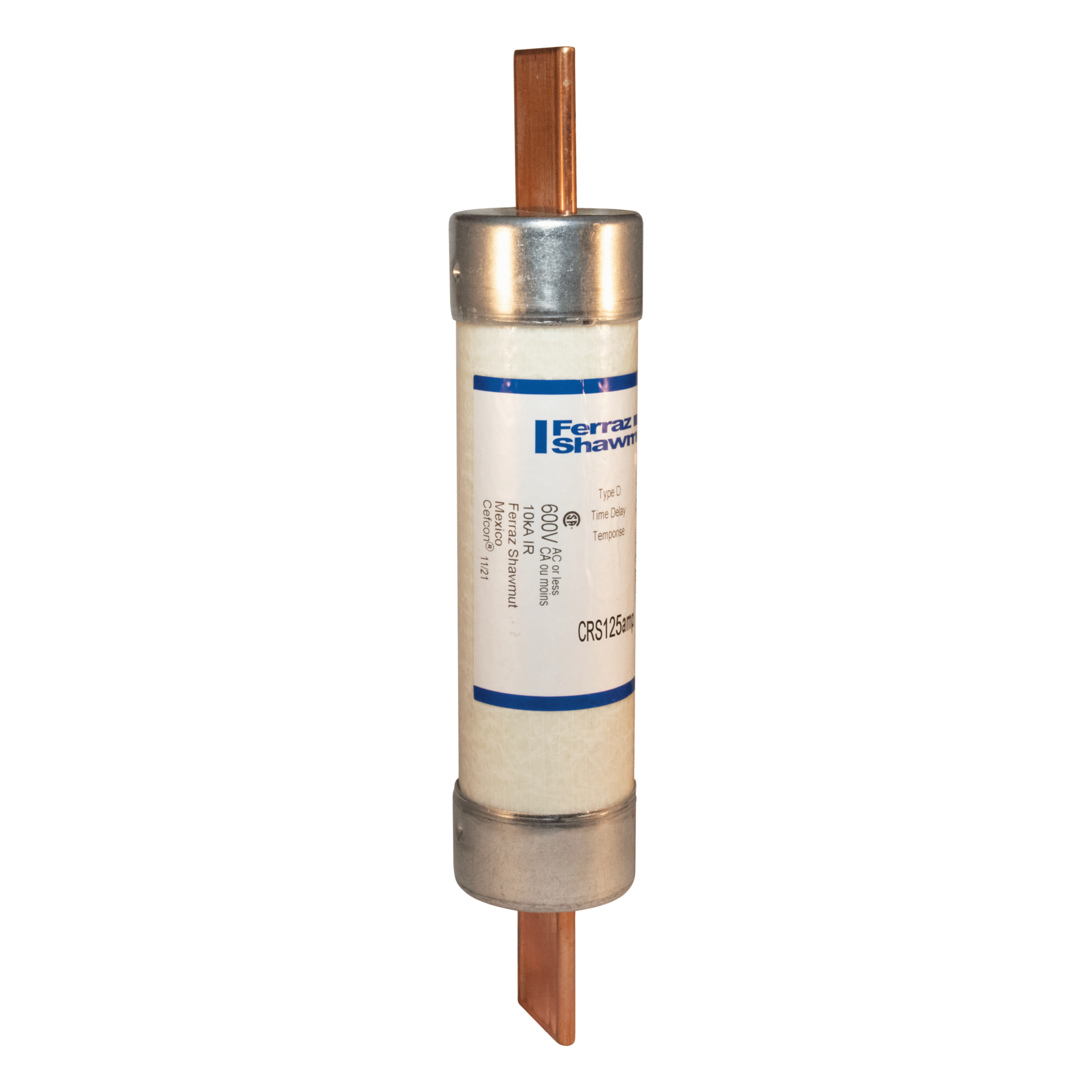

CRS125
$34.04
Mersen CRN and CRS fuses are standard fuses, Type D, with 10kA short circuit rating. Type D fuses satisfy the Canadian Electrical Code requirement for low melting-point fuses
Specifications
| Item number | CRS125 |
| Description | Fuse CRS – Class H 600VAC 125A Blade |
| EAN/UPC Code | 068938834456 |
| Rated voltage AC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 125 A |
| ROHS Compliant | Yes |
| AC or DC | AC |
| Fuse Class | Class H |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 47.8 mm |
| Product Length | 244.6 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 0.7348 kg |
| Sell Pack Width | 49.3 mm |
| Sell Pack Length | 254 mm |
| Sell Pack Height | 49.3 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | Paper |
| Product Weight | 0.6985 kg |
