ATQ8/10
$6.44

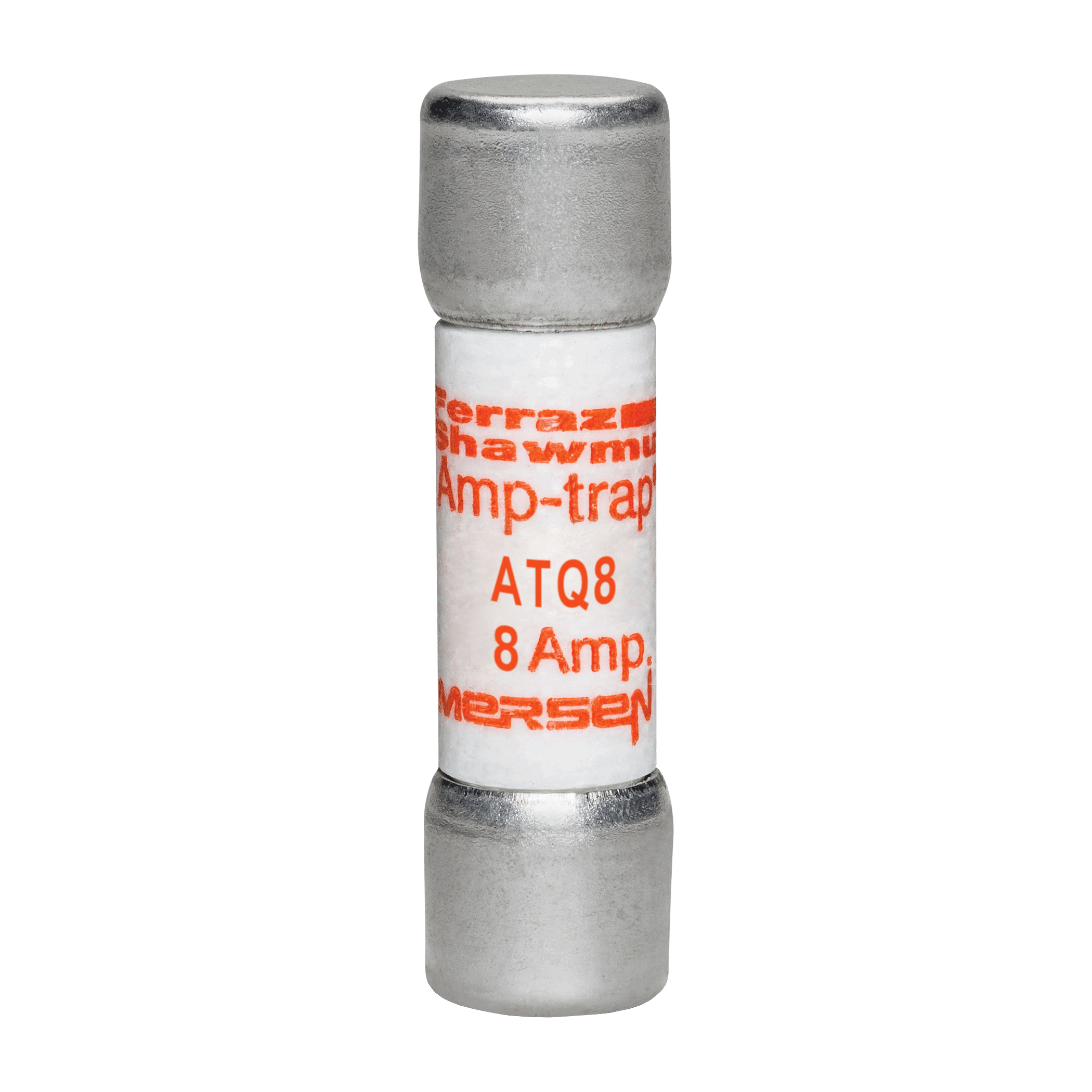

Amp-Trap ATQ midget time-delay fuses are rated 500VAC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection)
Specifications
| Item number | ATQ8/10 |
| Description | Fuse ATQ – Midget – Time-Delay 500VAC 0.8A Ferrule Amp-Trap® |
| EAN/UPC Code | 782001902681 |
| Rated voltage AC UL | 500 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 0.8 A |
| AC or DC | AC |
| Fuse Class | Midget |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 10.3 mm |
| Product Length | 38.1 mm |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.068 kg |
| Sell Pack Width | 22.4 mm |
| Sell Pack Length | 41.4 mm |
| Sell Pack Height | 54.1 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.0064 kg |
