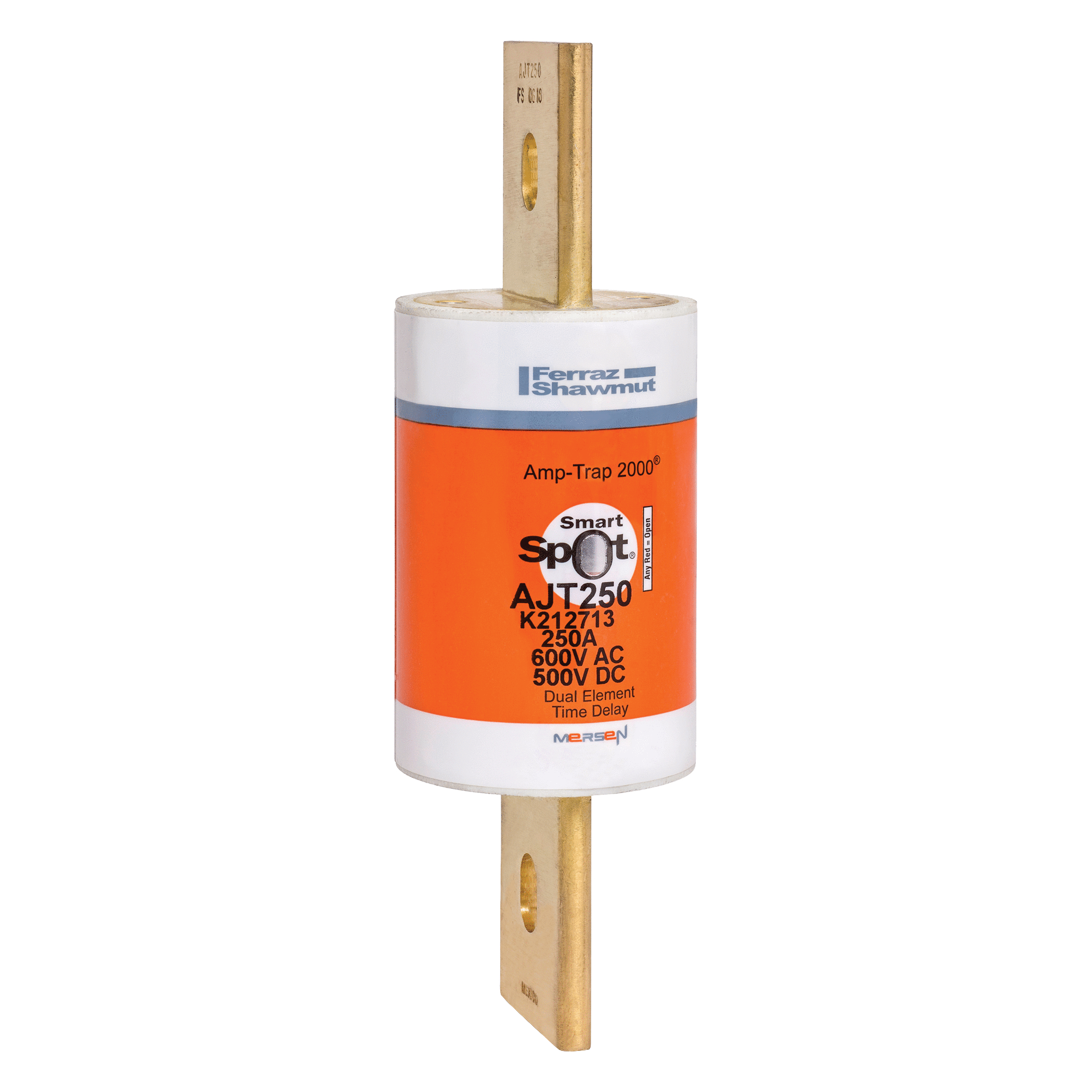

AJT250/600
$100.13
AJT Reducer Fuses are a safe permanent solution for decreasing your current rating without using a fuse reducer which are designed and list for temporary use only. These reducer fuses provide the same trusted protection levels as a traditional AJT fuses but in a larger body.
Specifications
| Item number | AJT250/600 |
| Description | Reducer Fuse AJT – Class J – Time-delay 600VAC 500VDC 250A Blade |
| EAN/UPC Code | 782001463885 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 500 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 250 A |
| AC or DC | AC/DC |
| Fuse Class | Class J |
| Speed/Characteristic | Time Delay |
| Mounting | Clip or Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 63.5 mm |
| Product Length | 203.2 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 1.5467 kg |
| Sell Pack Width | 63.5 mm |
| Sell Pack Length | 222.2 mm |
| Sell Pack Height | 60.5 mm |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 1.4742 kg |
